Product Summary

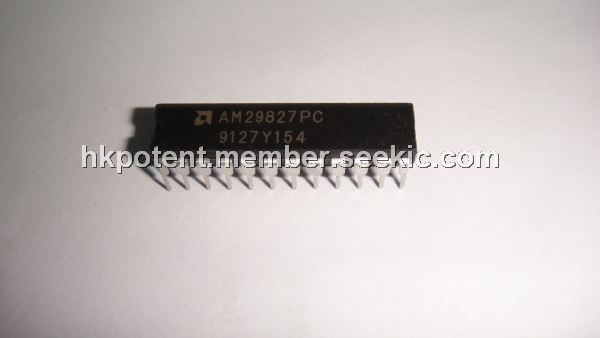

The AM29827PC is a 10-bit bus bufffer. It provides high performance bus interface buffering for wide data/address paths or buses carrying parity. The AM29827PC has NOR-ed output data inputs enables for maximum control flexibility. All buffer data inputs have 200mV minimum input hysteresis to provide noise rejection.
Parametrics
AM29827PC absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with power Applied: -55℃ to +125℃; (3)Supply Voltage to Ground Potential Continuous: -0.5V to +7.0V; (4)DC voltage applied to output for high output state: -1.5V to +5.5V; (5)DC input voltage: -0.5V to +5.5V; (6)DC output current, into outputs: 100mA; (7)DC input current: -30mA to +5.0mA.
Features
AM29827PC features: (1)high-speed bufferd and inverters; (2)200mV minimum input hysteresis on input data ports; (3)Three-state outputs glitch-free during power-up and power-down; (4)Outputs have Schottky clamp to ground; (5)48mA commercial IOL; (6)High capacitance inputs and outputs; (7)IOH specified 2.0V and 2.4V; (8)24-pin 0.3" space saving package; (9)Fully TTL compatible inputs and outputs; (10)IMOX high performance IMplanted OXide isolated process.

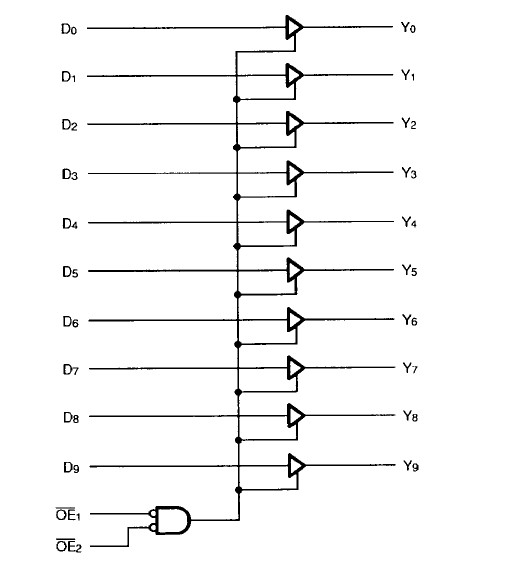

Diagrams
 |
